This is the circuit diagram of 0-60V / 0-2A variable power supply. Of course this circuit used to cover the voltage range from 0 to 60V and current from 0 to 2A. The maximum current can be increased, if we add the power transistors needed. Note the power output, just to cite one example, if delivery 2A 12V source to have a voltage drop of 48V with 2A consumption giving us a dissipation of 100 watts, is not a heating source, so, care.

Close attention should be paid to the way in which the two transistors BC327 circuit current protection, which work in saturation cutting work, another deals only activate an LED indicator on-load when the voltage drop lights output and will have to press the RESET button provided for the case. This will activate the output voltage again.

As already mentioned, this source has an intensity control, which disconnects the output voltage. This does not mean that supports the intersection of the (positive and negative) output cables. We must avoid this situation if possible as this will cause the destruction of transistors and other circuit components, it should be noted that we are dealing with respectable power.

For example: 5V and 2A output, this represents 65V – 5V = 60V which must be dissipated by the output transistors 2A, are talking about the power loss of 120 watts as a small “electric fire” this heat, more heat produced by 10W consumption advantage, they must evacuate 130W between the radiator and a fan that helps to lower the temperature that produces this “heater”, otherwise, you can imagine the result.

This is the circuit diagram of adjustable symmetric 1 to 24VDC, 1A Power Supply. This power supply give dual output positive and negatif output, you can adjust both positif and negative output (+1 to +24VDC and -1 to -24VDC). This kind of power supply also known as dual polarity power supply or splitted power supply which give positive anf negatif output.

This power supply can be used for universal usage, which required not more than 1A DC current. Please take a note that you should adjust the output voltage using general multimeter or DC voltmeter before use this power supply to protect the supplied devices.

Circuit Features:

• Low cost universal symmetric power supply
• Just add a suitable transformer and a heatsink
• Ideal for e.g. op-amp applications, amplifiers, …
• Trimmers can be replaced by potmeters to allow continuous adjustment of output voltage
• LED output indicators

Circuit Specifications:

• Positive and negative output adjustable between 1.2 and 24VDC
• Output current: up to 2 x 1A continuous (with suitable heatsink)
• Max. input voltage: 2 x 24VAC
• Very good line and load regulation
• Low ripple
• Short circuit protection
• Thermal protection

Circuit Manual of Adjustable Symmetric 1 to 24VDC, 1A Power Supply:

Adjustable Symmetrical Power Supply

1 file(s) 1.45 MB

Download Circuit Manual

Kit Version:
This circuit available in kit version by valleman, you may purchase this kit online.

The circuit is based around the 7805 voltage regulator. It has only 3 connections (input, output and ground) and it provides a fixed output. The last two digits of the part number specify the output voltage, eg. 05, 06, 08, 10, 12, 15, 18, or 24. The 7800 series provides up to 1 amp load current and has on-chip circuitry to shut down the regulator (rather than blowing out) if any attempt is made to operate it outside its safe operating area. (If this happens to you, let the chip cool down & attach the heatsink.)

It can be seen that there are in fact two separate circuits in this power supply. One 7805 is directly connected as a fixed 5V regulator. The second 7805 has a resistor divider network on the output. A variable 500R potentiometer is used to vary the output voltage from a minimum of 5V up to the maximum DC voltage depending on the input voltage. It will be about 2V below the input DC voltage.)

The capacitor across the output improves transient response. The large capacitor across the input is a filter capacitor to help smooth out ripple in the rectified AC voltage. The larger the filter capacitor the lower the ripple.

For small applications the heat sinks will not be needed. The tab on the regulator will dissipate 2W at 25 degree Celcius just in air. (This is equivalent, for example, to an input voltage of 9V, an output of 5V and drawing 500 mA.) However, as your projects get bigger they will draw more current from the power supply and the regulators will operate at a higher temperature.

Download this hobby power supply circuit manual in PDF version from the following link:

Hobby Power Supply

1 file(s) 39.50 KB

Download Circuit Manual

This power supply unit can be used for general purposes, as long as the maximum specifications are taken into account.

Power Supply Technical Data:

• Short circuit protected
• Overload protected
• Output voltage: adjustable 3 to 30V stabilized.
• Output current: max. 3A
• Output ripple voltage: 0.5mV.
• Input: 9 to 30V transformer, depending on the desired output

Download the manual of this circuit include the schematic and part list from the following link:

3-30V 3A power supply circuit manual

1 file(s) 673.66 KB

Download Circuit Manual

Kit Version:

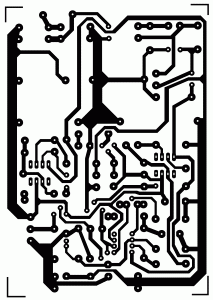

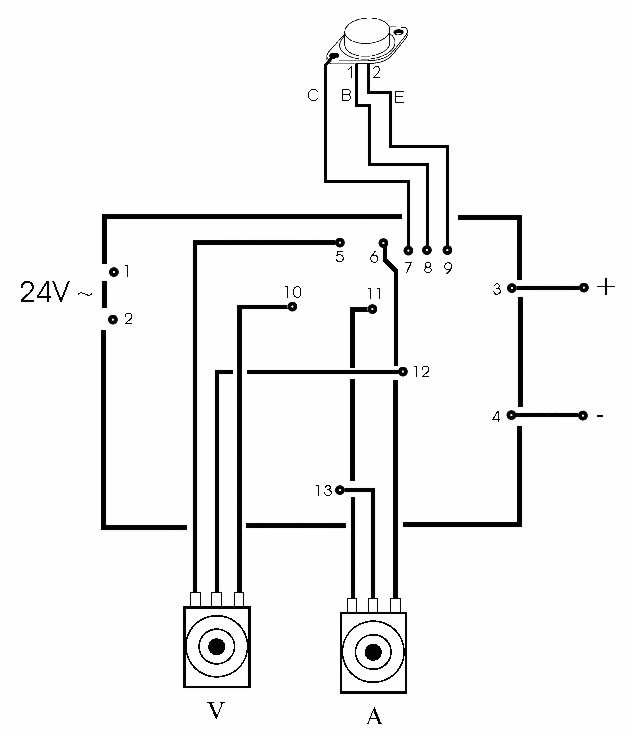

This is high quality 0-30v stabilized variable power supply circuit diagram. You will able to adjust the output voltage from 0 volt up to 30 volt DC. You also able to adjust the current output value from 0.002 A to 3 A. This variable power supply incorporates an electronic output current limiter that effectively controls the output current from a few mA (2 mA) to the maximum output of 3 A that the circuit can produce.

Component list:

R1 = 2,2 KOhm 1W
R2 = 82 Ohm 1/4W
R3 = 220 Ohm 1/4W
R4 = 4,7 KOhm 1/4W
R5, R6, R13, R20, R21 = 10 KOhm 1/4W
R7 = 0,47 Ohm 5W
R8, R11 = 27 KOhm 1/4W
R9, R19 = 2,2 KOhm 1/4W
R10 = 270 KOhm 1/4W
R12, R18 = 56KOhm 1/4W
R14 = 1,5 KOhm 1/4W
R15, R16 = 1 KOhm 1/4W
R17 = 33 Ohm 1/4W
R22 = 3,9 KOhm 1/4W
RV1 = 100K trimmer
P1, P2 = 10KOhm linear pontesiometer
C1 = 3300 uF/50V electrolytic
C2, C3 = 47uF/50V electrolytic
C4 = 100nF polyester
C5 = 200nF polyester
C6 = 100pF ceramic
C7 = 10uF/50V electrolytic
C8 = 330pF ceramic
C9 = 100pF ceramic
D1, D2, D3, D4 = 1N5402,3,4 diode 2A – RAX GI837U
D5, D6 = 1N4148
D7, D8 = 5,6V Zener
D9, D10 = 1N4148
D11 = 1N4001 diode 1A
Q1 = BC548, NPN transistor or BC547
Q2 = 2N2219 NPN transistor
Q3 = BC557, PNP transistor or BC327
Q4 = 2N3055 NPN power transistor
U1, U2, U3 = TL081, operational amplifier
D12 = LED diode

Detail explanation 0-30V stabilized variable power supply circuit, visit this page
