Here is the dynamic microphone amplifier circuit diagram. This circuit should be perfect for dynamic microphone…
Dynamic microphones are versatile and ideal for general-purpose use. They use a simple design with few moving parts. They are relatively sturdy and resilient to rough handling. They are also better suited to handling high volume levels, such as from certain musical instruments or amplifiers. They have no internal amplifier and do not require batteries or external power.

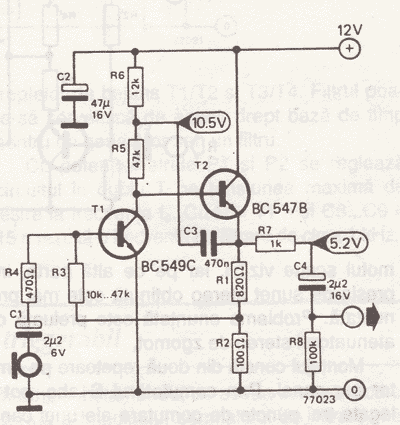

Schematic diagram:
Circuit Notes:
With a 3mVpp input signal the output will be 800mVpp. The maximum output voltage was 10Vpp when the input is 50mVpp. The frequencies domain is between 50Hz and 100KHz.
