50 Watt Power Audio Amplifier

Here the circuit diagram of 50W power amplifier. The amplifier uses a pair of power transistors that are MJ2955 and 2N3055 to amplify the input signal. You must use a heatsink on those transistors. The below design diagram uses for single input/output channel, just built two similar circuit to make it dual channel (stereo).

Schematic diagram:

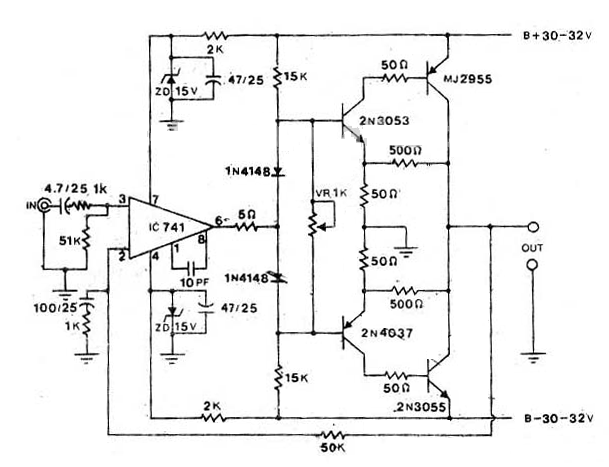

50 Watt Power Amplifier circuit diagram


PCB layout:

Power Supply Circuit:

This amplifier require dual polarity output power supply (+, ground and -). Use this power supply circuit:

Transformer: 3-5 Ampere, 24V secondary output
Diode: Diode bridge 5A or 4 piece of single diode 5A

circuit diagram
